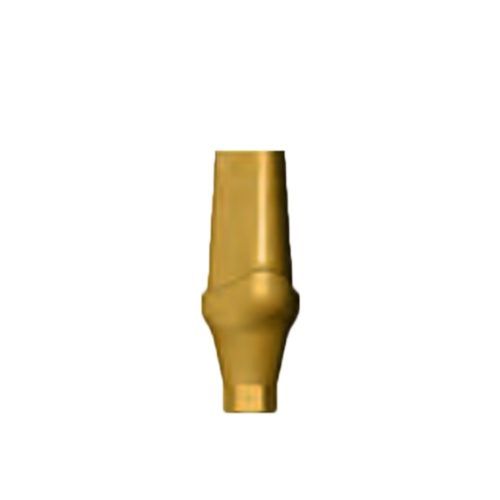

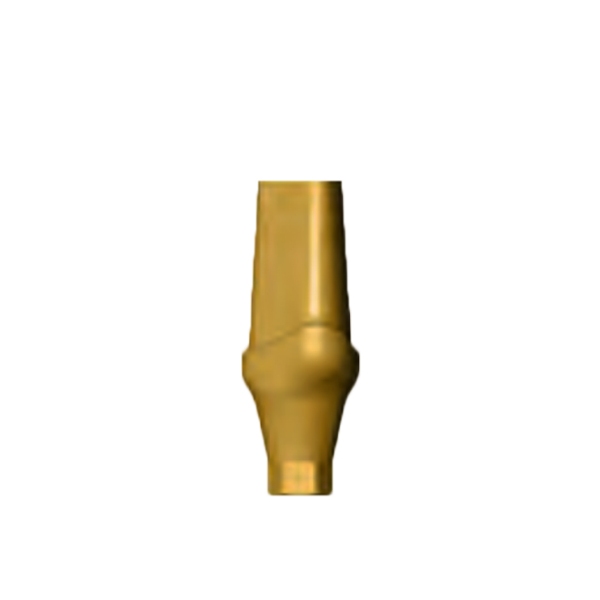

Bio Line Straight Abutment Incisor W – L 11.85mm (GAIB10.0)

Description

Manufacturer: Bio3 Implants GmbH

Straight abutment with biological construction identical to natural incisor teeth form for Wide platform (Internal Hex 2.5mm). It is installed using universal or hand prosthetic insertion drivers.

• Anatomic design; Identical to the shape of natural teeth therefore formation of constant anatomic gingival volume
• No need for soft tissue transplantation after transplantation or tooth removal
• Scalloped edges match the contour of the gingival margin
• High precise implant-abutment connection

PRODUCT CODE                Width 1               Width 2             Length               Length 1

       GAIB8.5                         4.5mm                 6.0mm               10.40mm             3.1mm

       GAIB10.0                       4.5mm                 6.0mm               11.85mm             5.0mm

Available in incisor, canine, premolar and molar types.

Implant System: Bio3 Advanced & Progressive Implants for Wide Platform

Internal Hex: 2.5mm

Width: 4.5mm width (1) and 6.0mm width (2)

Length: 11.85mm and 5.0mm length (1)

Material: Titanium

Package; Each pack contains 1 Straight Abutment + 1 Prosthetic Screw
